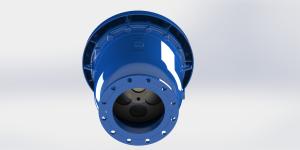

GJS500-7 EPDM Rubber Combination Air Vacuum Valve Flange Type

Name: GJS5007 EPDM Rubber Combination Air Vacuum Valve Flange Type
Brand: AFC OEM
Price: 1 USD

China GJS500-7 EPDM Rubber Combination Air Vacuum Valve Flange Type wholesale

Brand Name : AFC OEM

Model Number : ARVS

Certification : WRAS

Place of Origin : China

MOQ : 1

Price : Price Negotiable

Payment Terms : L/C, T/T

Supply Ability : 60 days for two containers

Delivery Time : Based on order

Packaging Details : Plywood cases

Product Name : Combination Air Release Vacuum Valve NPT Thread Or Flange Type Available

Model Code : KARS KARX KARR ARVS

Material : Ductile Iron GJS500-7

Float : Stainless Steel 304

Color : RAL 5010/5015

Rubber : EPDM

O-ring : NBR

Connection : Thread

Thread : BSP/ NPT

Flow Media : clear water

Contact Now

Combination Air Release Vacuum Valve NPT Thread Or Flange Type Available

Description:

ARVS is a single air release valve, air venting function, 304SS float and trim,EPDM seat, BPT or NPT thread, PN10/16.

Feature:

ARVS-Single air release valve is commonly installed in the peak in the pipeline, and used for exhausting the compressed air in pipeline system, generally there will be about 2% of dissolved air in water and it will release as bubbles and thru the air release valve nozzle. It can prevent the existence of bubble gap for flow, this can help a better efficiency for transmission of flow.

• High grade ductile iron body, reduce the weight and much longer life than cast iron.
• Simple mechanism with lever and float.
• The float and internal mechanism are made of AISI 304 stainless steel and last for much longer life cycles.
• Epoxy coating for both inside and outside.
• Male connection can easily be connected to isolated valves, no need further nipples..
• End connection can be BSPT or NPT thread.

Material

GJS500-7 EPDM Rubber Combination Air Vacuum Valve Flange Type

No.	Part Name	Material	Standard
1	Body	Ductile iron	EN-GJS500-7
2	Seat	Rubber	EPDM
3	Pin	Stainless Steel	AISI304
4	Bonnet	Ductile iron	EN-GJS500-7
5	Small Nozzle	Stainless Steel	AISI304
6	Hex Bolt	Stainless Steel	AISI304
7	Washer	Stainless Steel	AISI304
8	O-ring	Rubber	NBR
9	Support Plate	Stainless Steel	AISI304
10	Hex Bolt	Stainless Steel	AISI304
11	Float	Stainless Steel	AISI304

Dimension

GJS500-7 EPDM Rubber Combination Air Vacuum Valve Flange Type

DN	Model No.	A	C	H
15	ARVS-0015-BP	G 1/2	20	152
20	ARVS-0020-BP	G 3/4"	20	152
25	ARVS-0025-BP	G 1"	20	152
Remarks:BP--British Pipe Thread

Air Flow Characteristic

GJS500-7 EPDM Rubber Combination Air Vacuum Valve Flange Type
