Threaded FBE Coated Air Release Valve RAL5010 For Building Service

Name: Threaded FBE Coated Air Release Valve RAL5010 For Building Service
Brand: AFC OEM
Price: 1 USD

China Threaded FBE Coated Air Release Valve RAL5010 For Building Service wholesale

Brand Name : AFC OEM

Model Number : ARVS

Certification : WRAS

Place of Origin : China

MOQ : 1

Price : Price Negotiable

Payment Terms : L/C, T/T

Supply Ability : 60 days for two containers

Delivery Time : Based on order

Packaging Details : Plywood cases

Product Name : Air Release Valve Thread Type

Model Code : ARVS,KARS

Material : Ductile Iron GJS500-7

Float : Stainless Steel 304

Color : RAL 5010

Rubber : EPDM

O-ring : NBR

Connection : Thread

Contact Now

Air Release Valve For Building Service Thread Type FBE Coated

Description:

ARVS-Single air release valve and KARS- Combiantion air release valve thread type is usually installed in the peak of the pipeline, and used for exhausting the compressed air in pipeline system, generally there will be about 2% of dissolved air in water and it will release as bubbles and thru the air release valve nozzle. It can prevent the existence of bubble gap for flow, this can help a better efficiency for transmission of flow.

Feature:

• High grade ductile iron body, reduce the weight and much longer life.
• Simple mechanism with lever and float.
• The fl oat and internal mechanism are made of AISI 304 stainless steel and last for much longer life cycles.
• Epoxy coating for both inside and outside.
• Male connection can be easily connected to isolated valves, no need further nipples.
• End connection can be BSPT or NPT thread.

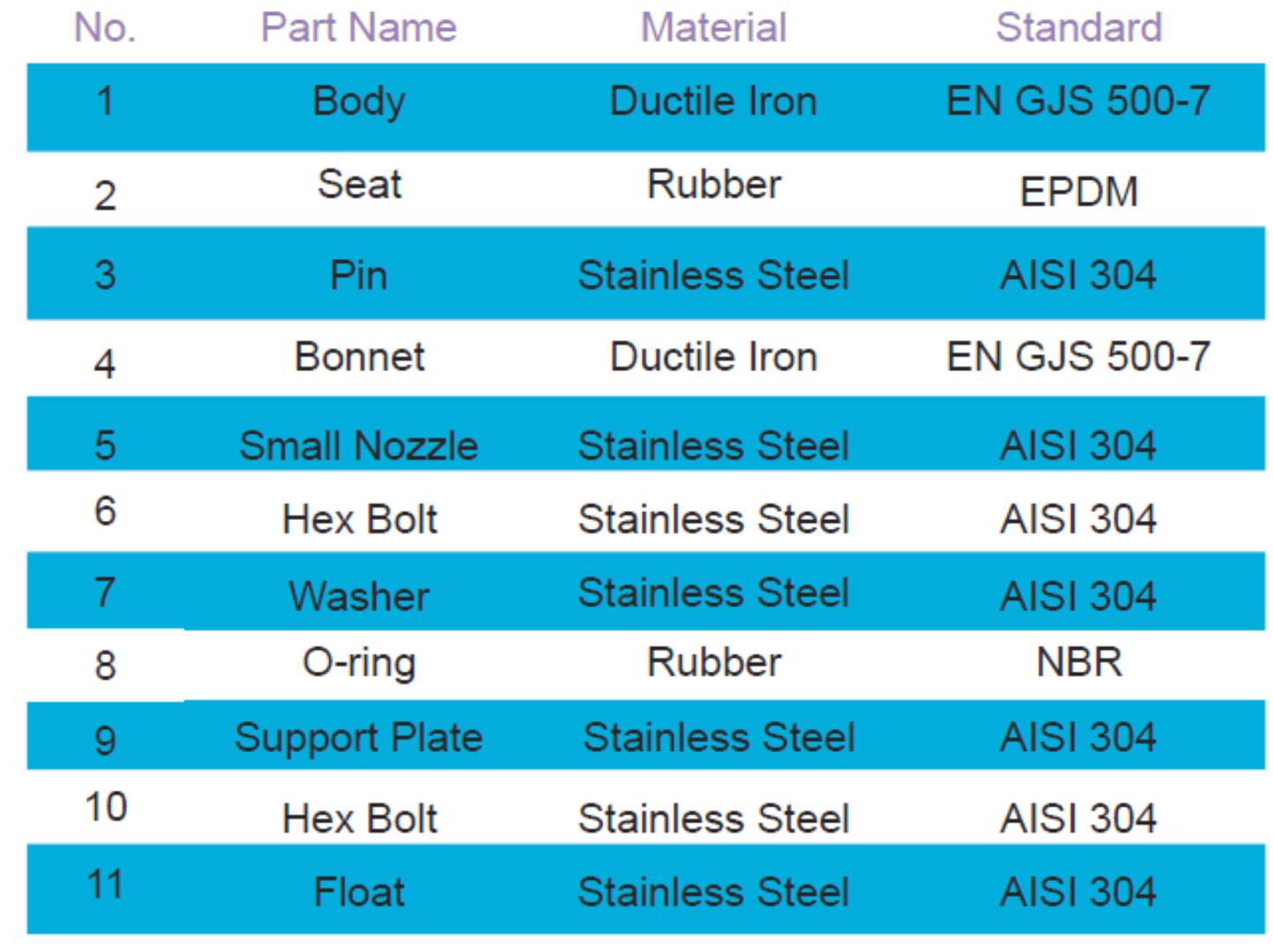

Material

Threaded FBE Coated Air Release Valve RAL5010 For Building Service

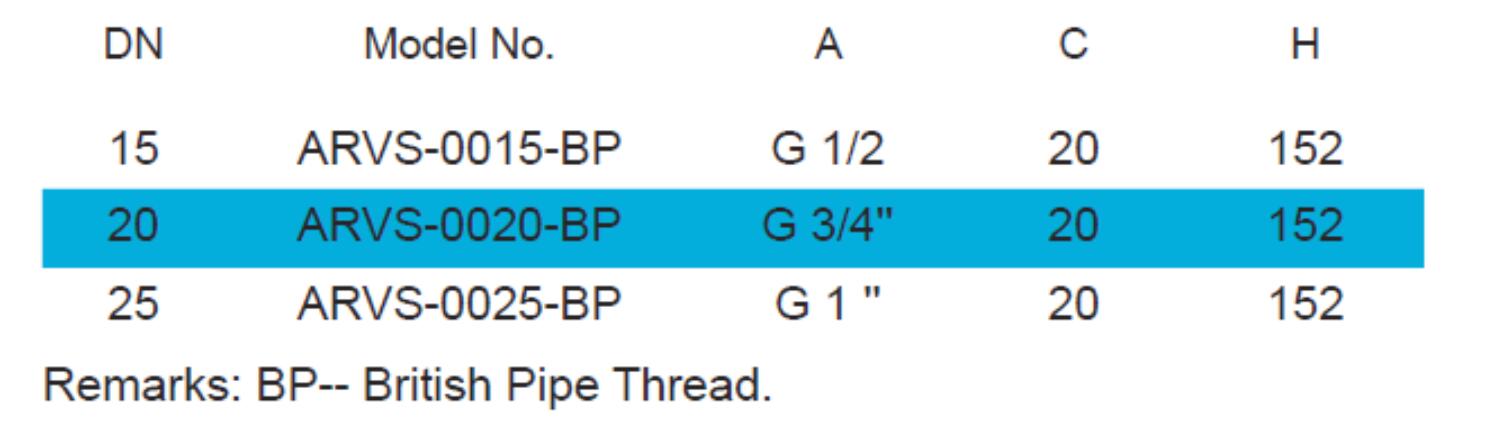

Dimension

Threaded FBE Coated Air Release Valve RAL5010 For Building Service

Air Flow Characteristic

Threaded FBE Coated Air Release Valve RAL5010 For Building Service
