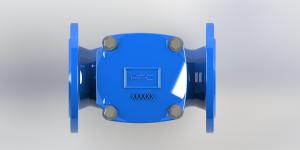

Rubber Disc Swing Flex Check Valve Anti Water Hammer Corrosion Resistance Available

Brand Name : AFC

Model Number : RDCV

Certification : CE, NSF61/372

Place of Origin : China

MOQ : 1

Price : Price negotiable

Payment Terms : L/C, T/T

Supply Ability : Based on order

Delivery Time : 45-60 days

Packaging Details : Plywood cases

Material : GJS500-7

Standard : EN12233

Coating : EPOXY

Disc : EPDM

Incline Angle : 40 degree

Media : Water And Waste Water

Contact Now

Ductile Iron EPOXY Coated 40 degree incline Nylon Reinforcement Disc Swing Flex Check Valve

Features:

Simple design, few internal components and big top cover makes inner cleaning, parts replacement and maintenance easier.

Powder coating-corrosion resistance

Opening pressure only needs 0.2 bar

No rusting in valve body seat

Over 50,000 cycles operations

Test requirement:

• Low pressure test : 0.5 Bar

• Opening pressure : 0.2 Bar

• Seat test : 17.6 Bar

• Body test: 24 Bar

Technical Data:
Size Range:DN 50-600mm
Pressure rating:
PN10 ,PN16.
Max. temperature Range:
-10℃ to 80℃

General Applications:
For general water supply, fire fighting,HVAC/ cooling & sewage system.

Quality System
IQC	Check call incoming parts
IPQC	Check the production process is qualified
FQC	All valves are pressure tested
OQC	Check the valve ourlook and packing

Material:

Rubber Disc Swing Flex Check Valve Anti Water Hammer Corrosion Resistance Available

DN	Medel No.	L	D1		D2		n-φd		C
DN	Medel No.	L	PN10	PN16	PN10	PN16	PN10	PN16	C
50	RDCV-0050	203	165		125		4-φ19		19
65	RDCV-0065	216	185		145		4-φ19		19
80	RDCV-0080	241	200		160		8-φ19		19
100	RDCV-0100	292	220		180		8-φ19		19
125	RDCV-0125	330	250		210		8-φ19		19
150	RDCV-0150	356	285		240		8-φ23		19
200	RDCV-0200	495	340		295		8-φ23	12-φ23	20
250	RDCV-0250	622	395	405	350	355	12-φ23	12-φ28	22
300	RDCV-0300	698	445	460	400	410	12-φ23	12-φ28	24.5
350	RDCV-0350	787	505	520	460	470	16-φ23	16-φ28	24.5
400	RDCV-0400	914	565	580	515	525	16-φ28	16-φ31	24.5
*450	RDCV-0450	914	615	640	565	585	20-φ28	20-φ31	25.5
500	RDCV-0500	978	670	715	620	650	20-φ28	20-φ34	26.5
*600	RDCV-0600	1067	780	840	725	770	20-φ31	20-φ37	30
*DN450 use the same F/F dimension of DN400.
